Produktinformation
HDZero Freestyle V2 VTX är en digital videosändare designad för FPV med HDZero-systemet.
PS! Produkttexten är maskinöversatt från norska.
Specifikationer från tillverkaren
Frekvens: 5,725-5,850GHzRF-effekt 25mw/200mwRF-kontakt: Säker U.FLMått: 29x30x14mmVikt: 22,3 gramStrömingång 7-25VMontering: 20mm x 20mm M2
Product details in english
Description

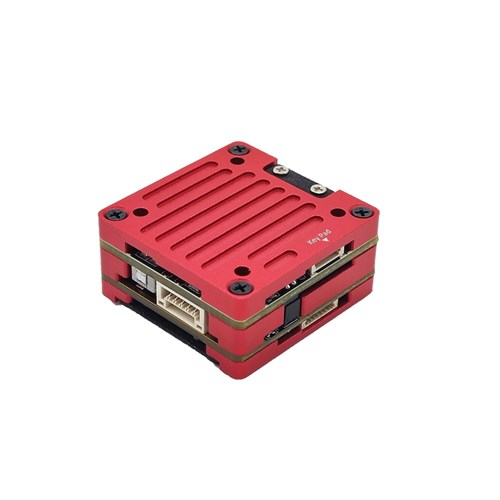

The HDZero Freestyle V2 VTX is our 2nd generation 5.8GHz digital video transmitter which can be fitted into most 3-5-inch HD drones. All sockets are well protected by the CNC case that provides durability, RF shielding and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The antenna and MIPI cable are secured by the included retention bar and screws.
The VTX supports 720p60 ,1080p30, 540p60 and 540p90 video modes.
The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities.
Specifications
Manufacturer Divimath, Inc
Model HDZero Freestyle V2 VTX
Weight 22.3 g
Dimensions 29x30x14mm
Operating Frequency 5.725-5.850GHz
Transmitter Power 25mW,200mW
Mounting Pattern 20x20mm M2 holes
Antenna Interface Secured U.FL
Video In Secured MIPI
SmartAudio Yes
MSP Canvas Mode Yes
Input Power 7-25V
Operating Temperature 32?F-104 ?F (0?-40?C)
Power Consumption 6-15W
Includes
1x Freestyle V2 VTX
1x Power Cable
1x SA Cable
1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
1x Double Sided Tape (29 x 30 x 1mm)
